Λεπτομέρειες προιόντος
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: ENWEI
Πιστοποίηση: CE
Αριθμό μοντέλου: 3190 μοντέλο
Έγγραφο: 3190 solar camera trailer.pdf
Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min: 1
Συσκευασία λεπτομέρειες: Ένα 20GP μπορεί να φορτώσει 4 μονάδες, ένα 40HQ μπορεί να φορτώσει 8 μονάδες
Χρόνος παράδοσης: Μέσα σε 30 ημέρες
Όροι πληρωμής: T/t
Δυνατότητα προσφοράς: 200 μονάδες το μήνα
Ηλιακοί πάνελ: |
3*400W |
Μπαταρίες: |
4*200ah, DC12V |
Κατάρτι: |
6 μέτρα, χειροκίνητη ανύψωση |
Ελεγκτής: |
MPPT 60A |
Αντιστροφέας: |
1000W, καθαρό ημιτονοειδές κύμα, έξοδος AC 220V |
Στήριξη των ποδιών: |
4 τεμ. |
Καλώδια: |
CAT6 και καλώδιο τροφοδοσίας |
Ελαστικά: |
R14 |
Θερμοκρασία εργασίας: |
-35 έως 60 βαθμοί Κελσίου |
Ρυμουλκούμενο στρώμα: |
Είναι εξοπλισμένο με λειτουργίες φρεναρίσματος, αντιστροφής και διεύθυνσης |
Ηλιακοί πάνελ: |
3*400W |
Μπαταρίες: |
4*200ah, DC12V |
Κατάρτι: |
6 μέτρα, χειροκίνητη ανύψωση |
Ελεγκτής: |
MPPT 60A |
Αντιστροφέας: |
1000W, καθαρό ημιτονοειδές κύμα, έξοδος AC 220V |
Στήριξη των ποδιών: |
4 τεμ. |
Καλώδια: |
CAT6 και καλώδιο τροφοδοσίας |
Ελαστικά: |
R14 |
Θερμοκρασία εργασίας: |
-35 έως 60 βαθμοί Κελσίου |
Ρυμουλκούμενο στρώμα: |
Είναι εξοπλισμένο με λειτουργίες φρεναρίσματος, αντιστροφής και διεύθυνσης |

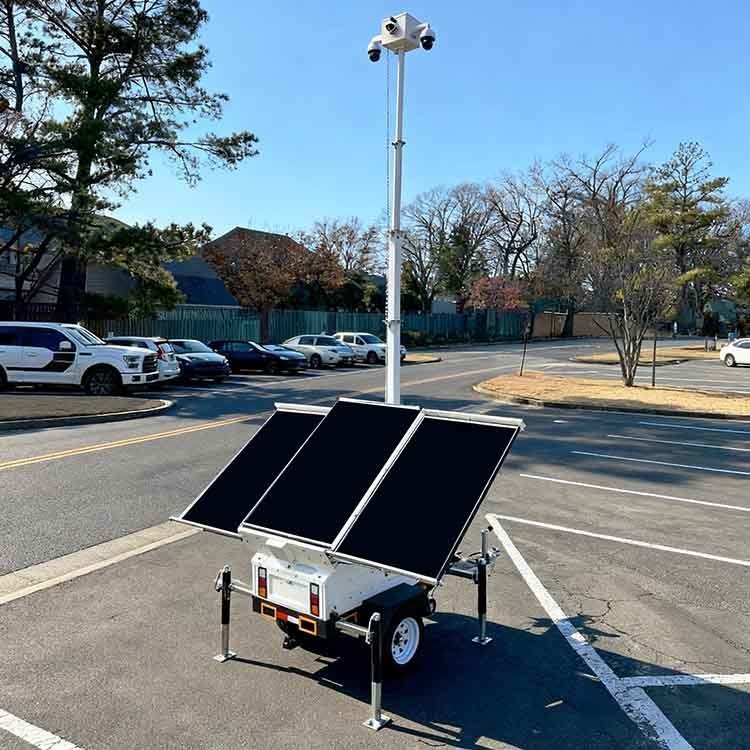

Solar-Powered Surveillance Trailer for Construction Site Security Monitoring
1. Ultimate convenience, rapid deployment.
2. Off-grid operation, green and environmental protection.
3. Remote real-time management: Through 4G/5G wireless networks, managers can remotely view the screen in real time on their computers or mobile phone apps.
4. The material of the cold-galvanized steel plate trailer body is powder coating on the surface, which has excellent anti-corrosion effect and is suitable for working in various environments.
Applications:
1. Remote area project: For remote construction sites with weak infrastructure, this solution is the only feasible and efficient monitoring method.
2. Monitor the progress of the project.
3. Monitor the main entrances and exits, material warehouses, living areas, etc., and record the entry and exit of people and vehicles.
4. Military patrols, border security.
Specification of Solar-Powered Surveillance Trailer:
Solar panels | 3*400W |
Batteries | 4*200Ah, 12V |
Mast | 6m, manual lifting |
Controller | 60A MPPT |
Inverter |
1000W, pure sine wave |
Size | 1850*1350*2150mm |
Weight | about 1000kg |
